High Performance Gimbals for ISR&T Missions
The SUAS Tactical Agile Gimbal (STAG™) family is a line of best in-class highly stabilized imaging systems optimized for a variety of ISR & ISR-T applications requiring high performance in a SWaP optimized form factor.
STAG™-5 Platform Common Features
- Precision two axis stabilization
- Integrated Global Positioning System (GPS) /Inertial Navigation System (INS) for geopointing / geolocation
- Onboard high-definition (HD) image processing
- Integrated multi mode target tracker
- Ethernet control supporting STANAG 4586
- HD capable H.264 video with Motion Imagery Standards Board (MISB) metadata
STAG™-5 Gimbals

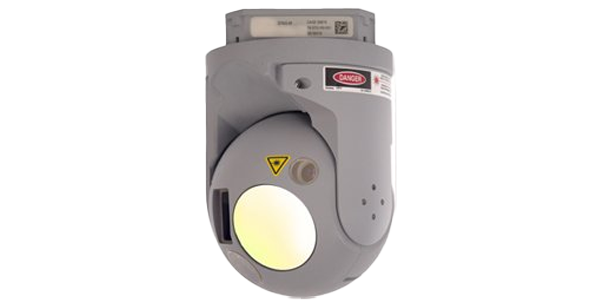

STAG™ 5-M
- Payload: MWIR 640×480, 8x optical zoom HFOV of 21.7° to 2.3° 720p Color Camera, HFOV of 14° to 4.1° Optional: Second camera, NVG compatible IR pointer, and Laser Rangefinder
- Weight: 5.0 lbs

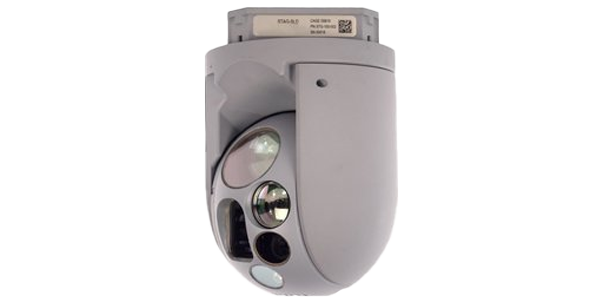

STAG™ 5-SLD
- Payload: SWIR 640×480 see-spot, HFOV 9” 720p Color Camera, HFOV of 14° to 4.1° STANAG 3733 compliant LD, coded target designator, Laser Range Finder, and IR Illuminator
- Weight: 4.7 lbs

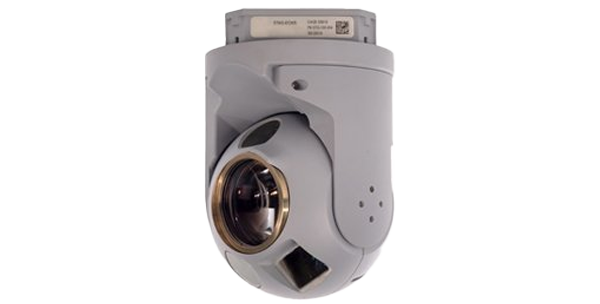

STAG™ 5-E0XR
- Payload: 720p color camera with continuous zoom from 20° to 0.6° HFOV Laser Rangefinder
- Weight: 4.6 lbs

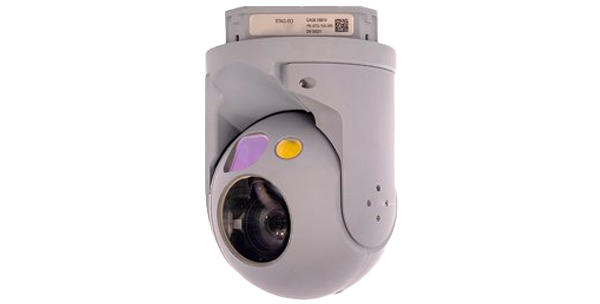

STAG™ 5-E0
- Payload: 1080p Color Camera, Continuous zoom from 64° to 2.4° HFOV Optional: Laser Rangefinder or Second Situational Awareness Camera 59° to 18.5° HFOV, NVG compatible IR Pointer
- Weight: 4.4 lbs

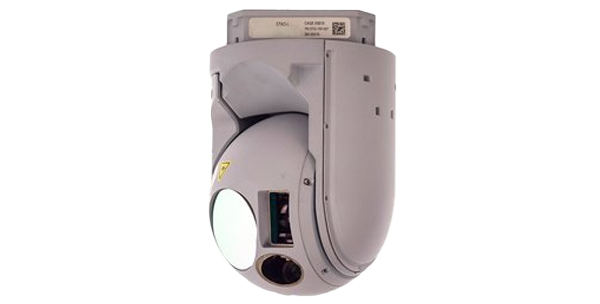

STAG™ 5-L
- Payload: HD LWIR, 1280×1024 10µm uncooled 18.3° HFOV 720p Color Camera, HFOV of 14° to 4.1ª, Optional NVG Compatible LP, LRF
- Weight: 4.2 lbs

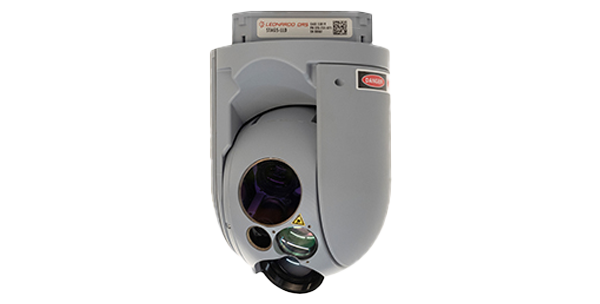

STAG™ 5-LLDV
- Payload: HD LWIR, 1280×1024 10µm uncooled 18.3° HFOV; Low Light/See-spot, 1280×1024 13.9° HFOV; 720p Color Camera, HFOV of 14° to 4.1°; STANAG 3733 Compliant LD
- Weight: 5.3 lbs
Related Products
STAG™ Family is a Line of Best-in-Class Stabilized Systems
STAG™ provides a broad range of ISR and Targeting (ISR&T) capabilities across several classes of payload families: STAG™-4, STAG™-5, and STAG™-8. The STAG™ Families support STANAG compliant laser designation in small UAS class gimbal payload. The open architecture and common platform base deliver the same precision pointing and controls across a broad range of mission optimized payloads.
 |
 |

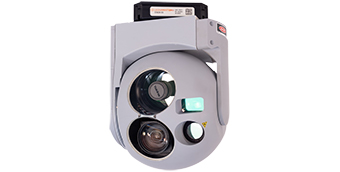

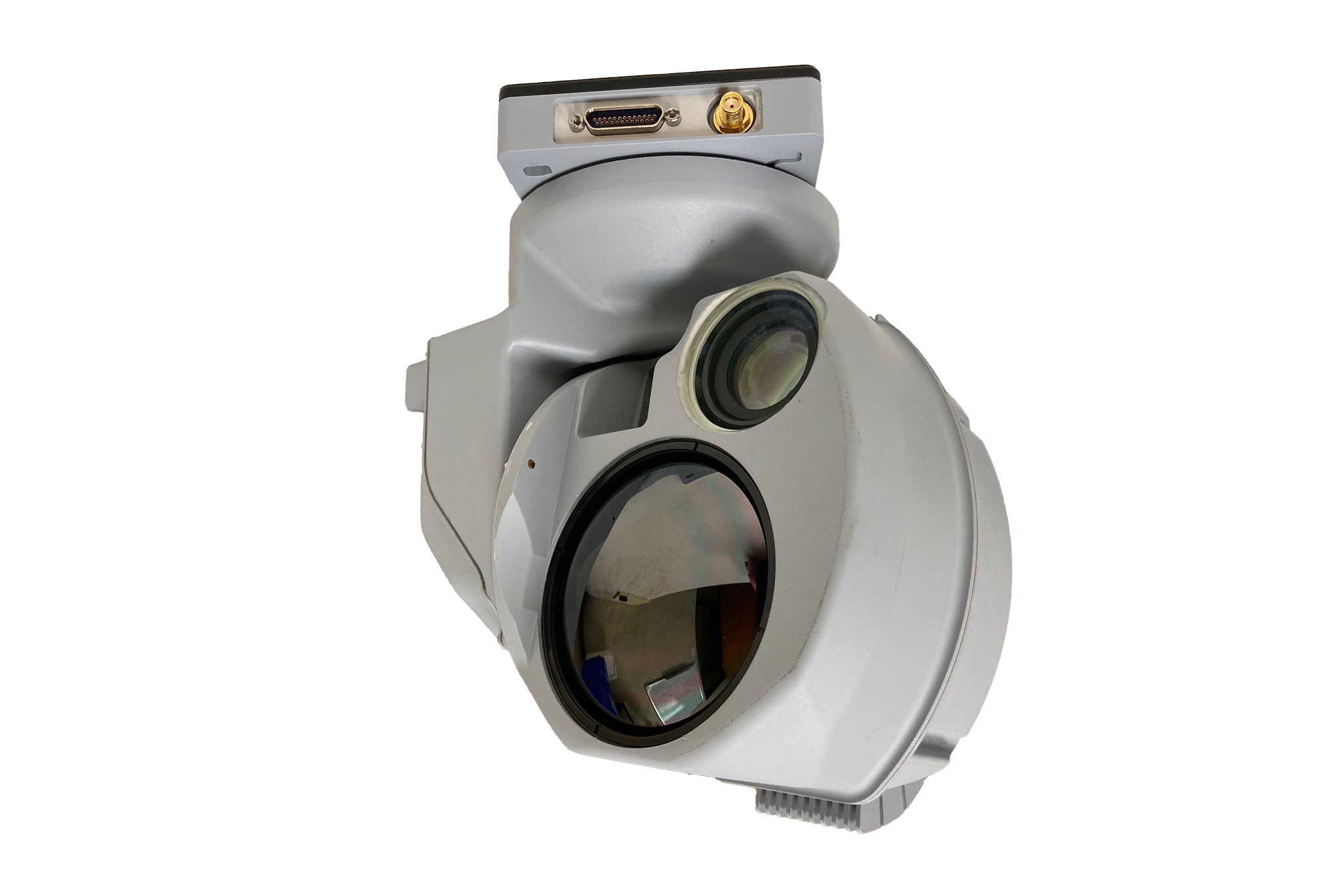

| STAG™-4 Family of Gimbals | STAG™-8 Family of Gimbals |
| The SUAS Tactical Agile Gimbal (STAG™) family is a line of best in-class highly stabilized imaging systems optimized for a variety of ISR & ISR-T applications requiring high performance in a SWaP optimized form factor. | The STAG™-8 family of gimbals is optimally designed to meet the stringent requirements of the Army’s FTUAS program in a high performance, SWaP optimized modular design (MOSA Compatible), offering a variety of payload options. |
