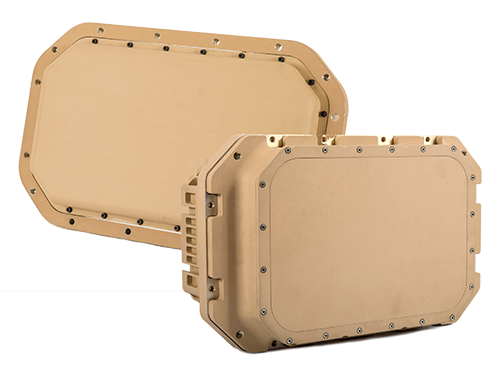

Advanced / Enhanced Compact Hemispheric Radar (aCHR / eCHR)

Sharing the same cutting-edge software-defined, multi-mission, 4D AESA pulse Doppler radar technology, the aCHR and eCHR radars provide outstanding protection for the maneuver force.

Unrivaled Combat Operational Experience with aCHR / eCHR

While the aCHR is tailored for Active Protection Systems (APS) Vehicle Protection Systems (VPS) and Hostile Fire Detection (HFD), the eCHR is optimized for Counter-Unmanned Aircraft System (C-UAS) and Very Short-Range Air Defense (VSHORAD) missions. Both these advanced radars offer best-of-breed radar sensors for air defense and active defense against all types of aerial threats.

Advanced / Enhanced Compact Hemispheric RadarKEY FEATURES:

  • Active Electronically Scanned Array (AESA) antenna, GaN amplifiers
  • Software-defined, digital, with adaptive beam forming
  • Hemispheric search and track with four radars
  • Extremely fast volume coverage
  • Wide range of threat velocities
  • Interoperable via Standard interfaces
  • High immunity through Electronic Counter Countermeasures (ECCM)

MAIN ADVANTAGES:

  • Deployed on operational APS / VPS and VSHORAD systems
  • Superior performance against low signature targets (RCS, Velocity, Altitude)
  • Multipath and clutter handling through advanced antenna topology
  • Multi-Mission ‘one radar does it all’
  • Automated operation through advanced signal processing and algorithms
  • Complete dynamic Air Situational Picture (ASP) mounted on tactical vehicle or vessel
  • Unique low-probability-of-detection features (aCHR)
  • Ballistic survivability by antenna & radome construction (aCHR)
  • Advanced antenna topology (MIMO) provides extended accuracies, multipath and clutter handling
  • Handles hundreds of targets through Track While Search (TWS) and Revisit modes
  • In-depth 4D analysis of Doppler and other target features
  • Highly cost-effective SWaP-C superiority

Technical Specifications

The aCHR / eCHR radars provide outstanding protection for the maneuver force. They are optimized for Counter-Unmanned Aircraft System (C-UAS) and Very Short-Range Air Defense (VSHORAD) missions.
