Tamarisk 640 Thermal Camera Core

Tamarisk 640 With four times the resolution of the class-leading Tamarisk® 320, the Tamarisk® 640 Thermal Camera Core provides superior performance while maintaining a small size, low weight, and minimal power consumption.

The Tamarisk® 640 uses Leonardo DRS' uncooled, highly sensitive Vanadium Oxide (VOx) detector, incorporating patented absorber technology to capture infrared energy in the 8 to 14 micrometer spectrum.

This high-performance core is enhanced with dynamic range, pixel saturation logic, multi-mode Image Contrast Enhancement and 24-bit RGB color.

Product Features

640 x 480 pixel resolution
17 µm pixel pitch means excellent image quality with smaller size and weight
Weighs < 60 grams
Power consumption < 1.5W during steady state operation
Multiple athermalized lens options from a wide angled 90° HFOV to a narrow 9°
Integrated Shutter for improved image calibration
24-bit RGB output via Camera Link®
Multi-mode Image Contrast Enhancement (ICE™)
Compatible with existing Tamarisk®320 Accessories
Industry leading 2-year warranty

Lens Options & Accessories

Lens Options

Select a lens option below for an enlarged view with dimensions.

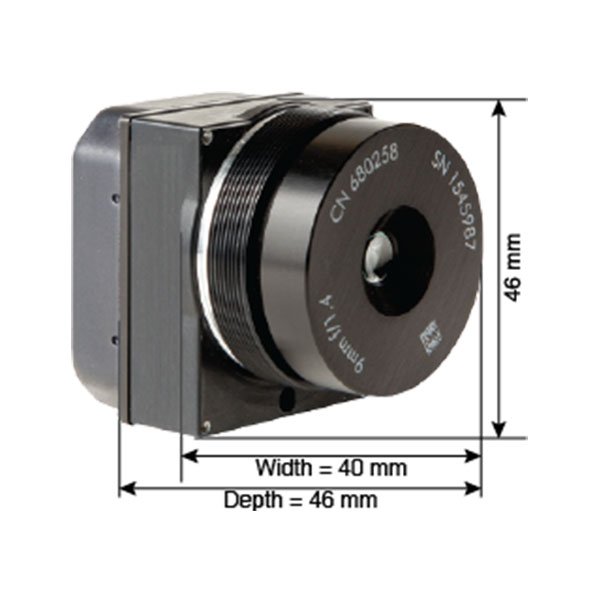

Tamarisk^®640 90° Atherm	Tamarisk^®640 70° Atherm	Tamarisk^®640 49.8° Atherm	Tamarisk^®640 44° Atherm	Tamarisk^®640 37.5° Atherm

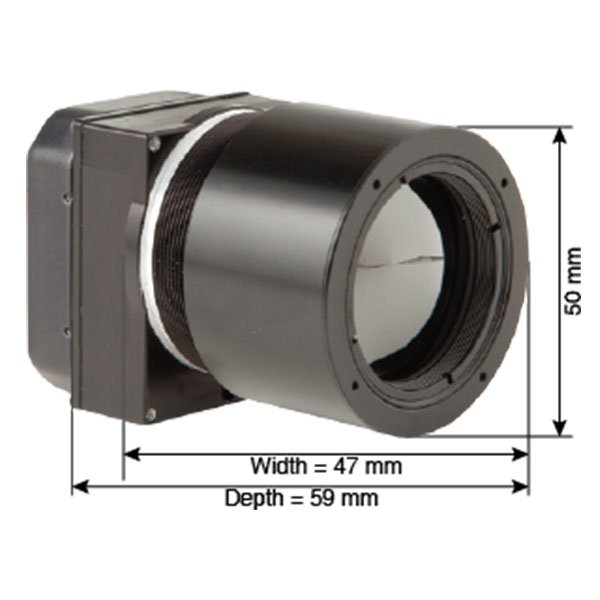

Tamarisk^®640 24.8° Atherm	Tamarisk^®640 17.6° Atherm	Tamarisk^®640 12.4° Atherm	Tamarisk^®640 9.6° Atherm

Accessories

Feature Board 1011339-001
- Optional feature board provides power, RS-170 video-out, RS-232 and USB 2.0 serial command and control through a single 30-pin connector
Breakout Box 1003785-001
- For use with camera modules equipped with the optional Feature Board
Un-terminated Cable 1010590-001
- 12" 30-pin cable terminated on one end
Cable Assembly Terminated 1002775-001
- 12" 30-pin cable terminated on both ends
Back Shell / OEM Housing 1014304-001
- Custom fit when a Feature Board is included
Tripod Mounting Bracket 1017276-SP
- Anodized aluminum with 1/4-20 thread in base
Custom Lens Calibration 1015896-100
- Enables custom lens solutions to work the the Tamarisk® core

Tamarisk 320 Thermal Camera Core

Weighing as little as 33 grams, occupying less than 30 cubic centimeters, and drawing as little as 850 mW of power, the Tamarisk® 320 Thermal Camera Core redefines the compact class of thermal cameras.

The first 320 x 240 Vanadium Oxide (VOx) microbolometer of its kind, it combines industry-leading 17 μm pixel-pitch, Long-Wave Infrared (LWIR) technology with patented advanced absorber superstructure to provide greater sensitivity, improved detection, and unparalleled thermal imagery.

Regardless of lighting conditions, the Tamarisk® 320 produces crystal-clear imagery day and night through smoke, dust, haze, and fog.

Product Features

320 x 240 pixel resolution
Less than 2 cubic inches
Weighs just over an ounce
Draws as little as 850 mW during steady state operation
Multiple lens options from a wide angle 90°HFOV to a narrow 6.2°
Integrated Shutter for improved image calibration
X1 architecture for easy integration into existing systems

Lens Options & Accessories

Lens Options

Select a lens option below for an enlarged view with dimensions.

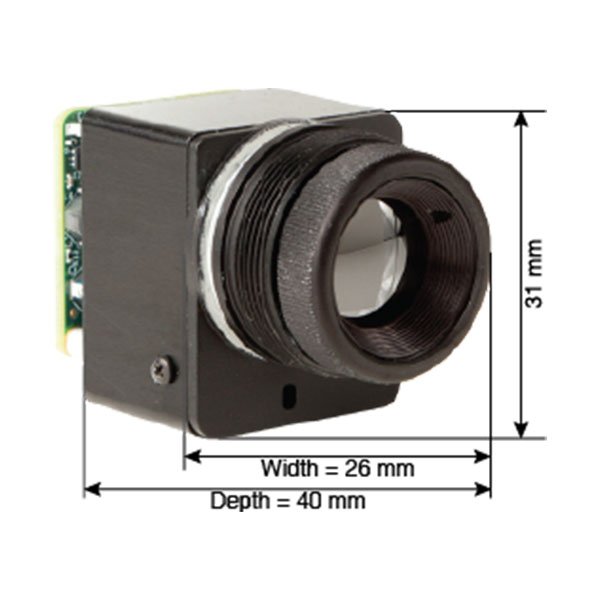

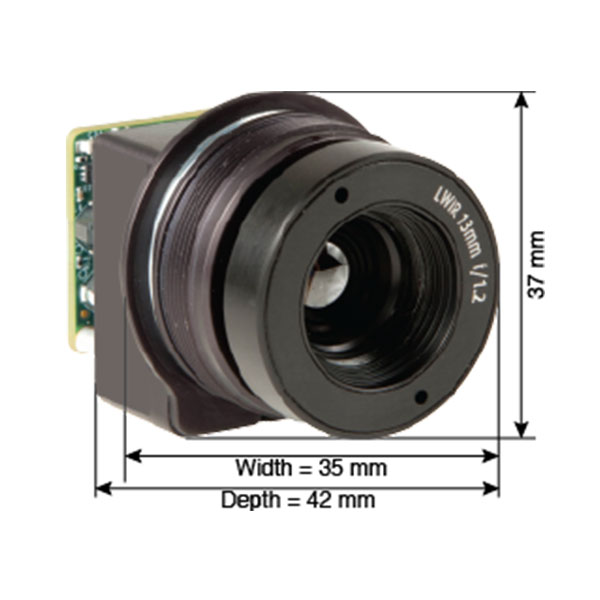

Tamarisk^®320 90° Atherm	Tamarisk^®320 60° Atherm	Tamarisk^®320 42° Atherm	Tamarisk^®320 27° Manual Focus	Tamarisk^®320 24° Atherm
Tamarisk^®320 16° Atherm	Tamarisk^®320 15° Manual Focus	Tamarisk^®320 9° Manual Focus	Tamarisk^®320 9° Atherm	Tamarisk^®320 6° Atherm

Accessories

Feature Board 1011339-001
- Optional feature board provides power, RS-170 video-out, RS-232 and USB 2.0 serial command and control through a single 30-pin connector
Breakout Box 1003785-001
- For use with camera modules equipped with the optional Feature Board
Unterminated Cable 1010590-001
- 12" 30-pin cable terminated on one end
Cable Assembly Terminated 1002775-001
- 12" 30-pin cable terminated on both ends
Back Shell / OEM Housing 1013744-SP
- Custom fit when a Feature Board is included
Tripod Mount Bracket 1014554-001
- Anodized aluminum with 1/4-20 thread in base
Tamarisk HW/SW Developers Kit (H/SDK) 1016704
Tamarisk HW/SW Kit Documentation 1016706-100
Custom Lens Calibration 1014868-100
- Enables custom lens solutions to work with Tamarisk® core
