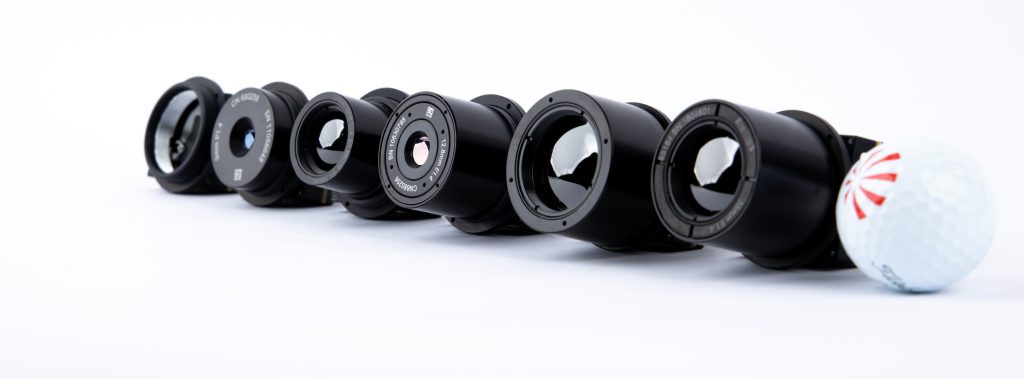

Tenum® 1280 Family of Thermal Camera Cores

A New Frontier in Infrared Technology in a 10-Micron Uncooled Thermal Core.

The Tenum^® 1280 is the first high-resolution 10-micron thermal camera core from Leonardo DRS featuring a 1280 x 1024 sensor and 14-bit video.

The 10-micron pixel pitch Vanadium Oxide (VOx) technology is approximately 30% smaller than competing 12-micron FPAs. This ultra-small design supports a variety of smaller, lower cost optical lens assemblies and is backwards compatible with the previous generation of Tamarisk^® uncooled camera modules.

The Tenum^® 1280 offers superior long-wave infrared (LWIR) detection at 30 fps and thermal sensitivity of <30 mK makes it ideal for a variety of OEM applications.

Tenum^® 1280 Highlights

• Ultra-small 10 µm pitch VOx technology for superior uncooled LWIR detection
• High-resolution 1280 x 1024 sensor; 14-bit video
• Thermal sensitivity <30 mK and 30 fps offers incredible sensitivity

Tenum^® 1280 includes:

• Image Contrast with Enhancement (ICE^™) with gain and level bias controls
• External Sync
• 24-bit RGB color
• White Hot/Black hot polarity image control
• Orientation invert and revert image control
• Six predefined color palettes and customizable color palette
• -40°C to 100°C dynamic range
• Optional, custom lens calibration memory storage with up to five custom lenses or five operating temperatures

Tenum^® 1280 Camera Module Configurations:

• Base configuration (includes detector, bias board, and processor board)
• Feature Board (facilitates USB and RS232 communication, CameraLink  video, supports external power regulation)
