Designed for high-volume integration, the 10-micron Tenum Orbit delivers cost-optimized ISR for Group 1–3 UAS and uncrewed systems.

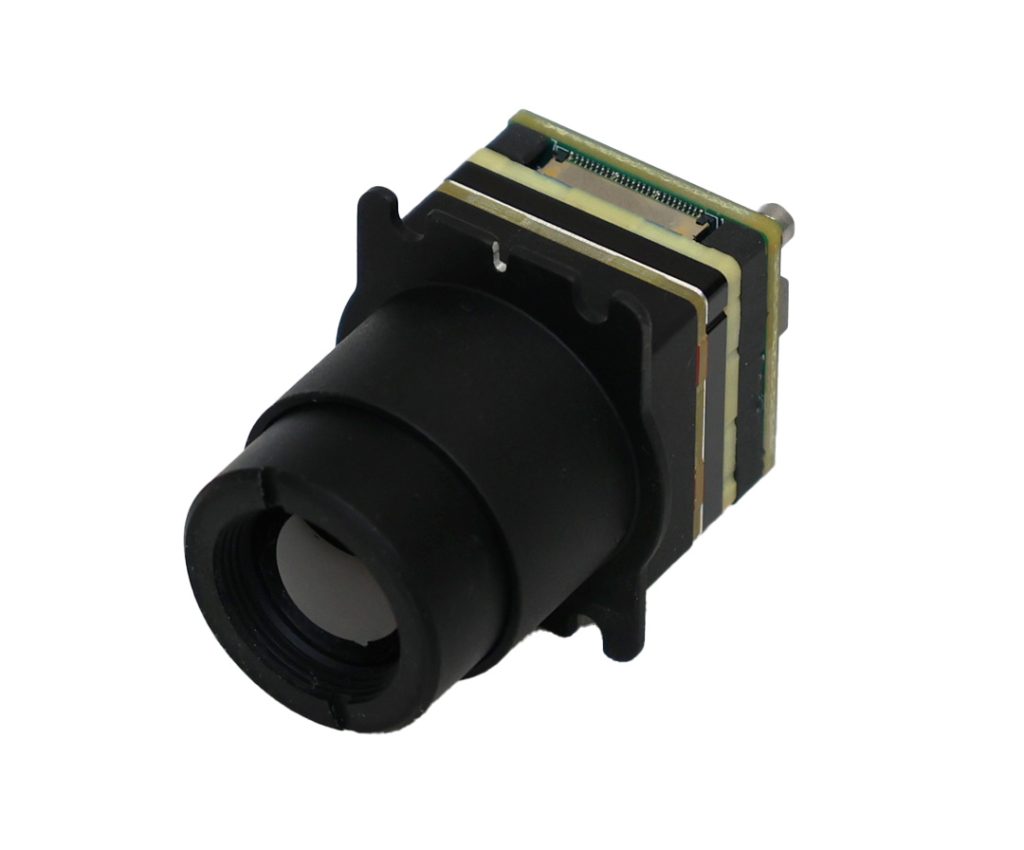

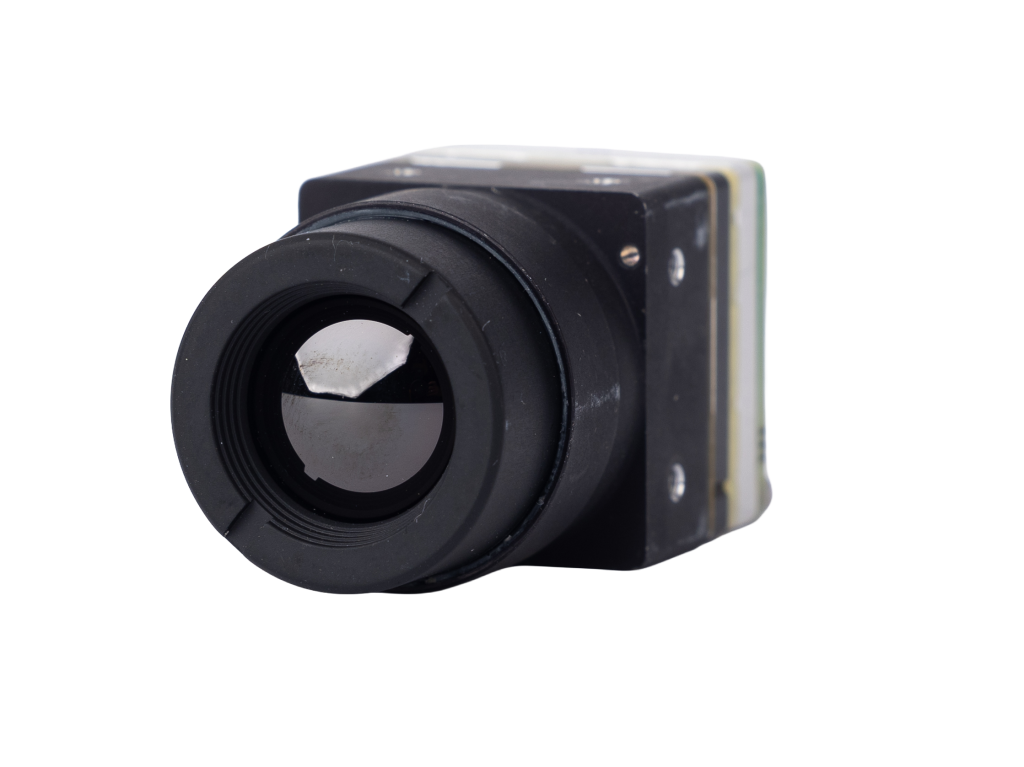

Tenum® 640 Orbit™ is an advanced uncooled LWIR camera module engineered for unmanned air, ground, and maritime platforms. Built as an OEM module with a SWaP-C optimized thermal imaging core, it delivers shutterless, low-power, high-performance capability in an ultra-compact 16.4 cc package weighing just 28 grams.
Designed to improve tactical decision-making, it provides persistent high frame-rate thermal imagery for detection, tracking, navigation, and collision/obstacle avoidance in day/night and degraded-visibility environments. As a cost-optimized ISR payload backed by proven Tenum detectors and DRS engineering, it streamlines integration with MIPI CSI/CCS, configurable video outputs, and MOSA/SOSA-aligned design to reduce time to market and unit cost.
Tenum® Orbit Highlights
- Uncooled LWIR thermal camera module for unmanned air, ground, and maritime platforms
- SWaP-C optimized core defense-grade reliability
- Low-power design to help extend platform endurance
- High frame-rate thermal video for real-time sensing
- 10µm detector supports detection, tracking, navigation, and collision/obstacle avoidance
- Performs in day/night and degraded-visibility conditions
- Configurable video outputs
- MOSA/SOSA-aligned design for scalable, high-volume UAV integration
Key Capabilities
- MIPI (Mobile Industry Processor Interface) Native: Industry-standard MIPI (or optional USB 2.0) supporting CSI and CCS for true plug-and-play with any MIPI-compliant image processor – simplifies integration on OEM platforms and unmanned systems.
- Flexible Video Outputs: User-selectable 14-bit or 8-bit white/black-hot formats; fixed 640×512 at 60 Hz or externally controlled frame-rates up to 60 Hz; digital zoom available.
- Shutterless, Continuous Operation: Quiet, uninterrupted video with on-the-fly non-uniformity correction for mission-long image stability and reduced maintenance risk by removing moving parts.
- Exceptional Sensitivity and Efficiency: Industry-leading 10 μm pixel pitch technology enabling ultra-low sensitivity (<20 mK at room temp) and nominal power consumption around 1.2 W (nominal) – optimized for prolonged missions.
- Modular and Configurable: Multiple fields of view, interface, and performance levels to match mission SWaP requirements; export-controlled variants available to meet global deployment needs.
- Standard compliance with ROHS and WEEE. IP 67-rated sealed lens.
