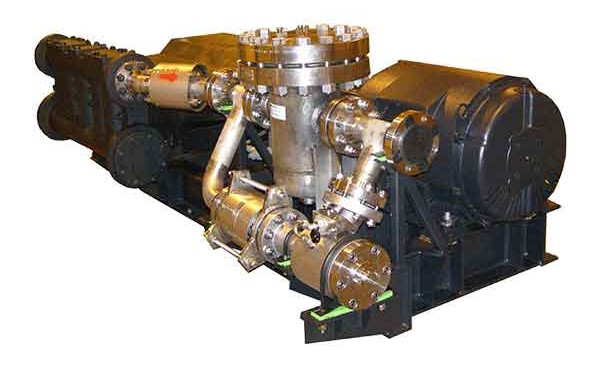

High Pressure Water Mist Fire Fighting Pump (WMFFP)

Safe and Environmentally Friendly Fire Suppression

Water Mist Fire Fighting Pump (WMFFP)The Water Mist Fire Fighting Pump (WMFFP) system is a high pressure on-board pumping system used in conjunction with specially designed spray nozzles to extinguish shipboard fires.

The Water Mist system is the U.S. Navy’s next generation fire fighting system. It is being used on the LPD 17 San Antonio Class Amphibious Transport Ships, the LHD 8 Makin Island Amphibious Assault Ship, the LHA 6 America Class Amphibious Assault ships and the DDG 1000 Zumwalt Class Multi-Mission Surface Combatants.

The enhanced capabilities of the Leonardo DRS' Water Mist Fire Fighting Pumps make them a key element in the 21st Century Naval Fleet.

HIGHLIGHTS

  • The nozzles create a backpressure of up to 1,250 psi at a flow rate up to 400 GPM.
  • The system’s design creates small droplets of water which are very effective at absorbing heat.
  • The fire is extinguished mainly from cooling, and oxygen is displaced by the resulting water vapor rather than saturating the area.
  • The Water Mist System is designed to replace dangerous and environmentally damaging Halon Fire Suppression Systems.
  • On-board potable water is used to minimize damage to shipboard equipment.
  • WMFFP is qualified to Military Standard (MIL-STD) 901D for heavy weight shock and MIL-STD-167 vibration requirements.
Shock Test Water Mist Fire Fighting Pump
Shock Test

Leonardo DRS manufactures a host of equipment for the US Navy. MIL-S-901 shock testing must be done on some equipment to meet stringent U.S. Navy requirements.

Watch the video

WMFFP Data Sheet
Water Mist Fire Fighting Pump

A high pressure on-board pumping system used in conjunction with specially designed spray nozzles to extinguish shipboard fires.

Download the data sheet

Virtual Tech Expo Series: NAVAL FORCES
The Virtual Tech Expo Series: NAVAL FORCES

Bringing people and technology together - virtually. Now LIVE!

Experience the event

Related Products & Services

ADACS function diagram

Advanced Data Acquisition and Control System (ADACS)

Learn more

Electric & Hybrid Electric ship products

Electric and Hybrid Electric Ship Propulsion Systems

Learn more

switchboard

Switchboards

Learn more

load center

Loadcenters

Learn more

motor controller

Motor Controllers for Marine Platforms

Learn more

naval electronic motor operator

Navy Electronic Motor Operator

Learn more

PRE image

Permanent-magnet Radial Field Embedded Magnet (PRE) Series Motors

Learn more

navy AHU collection

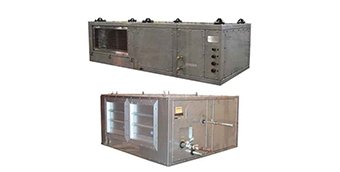

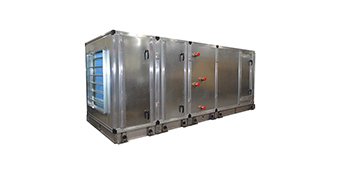

Navy and Marine Grade Air Handling Units (AHU)

Learn more

marine coil product

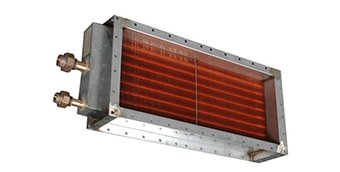

Navy and Marine Coils
