AIR HANDLING UNITS



Navy Air Handling Units (AHU)

Maintain Fully Supported and Fully Integrated HVAC Systems

Leonardo DRS’ Navy heating, ventilating, air conditioning air handling units (AHU) are designed to comply with Navy specifications, are first article qualified and, in many cases, are qualified provided listed. Our Navy AHUs are manufactured with proven performance and quality construction, and are fully supported with replacement parts and full integrated logistics support data. Our short manufacturing lead times make our Navy AHUs readily available for both new construction, and overhaul and repair.



NAVY AHU MODELS:

Self Contained Air Conditioners (SCAC)

Self Contained Air Conditioners (SCAC)

SCAC is in line with Marlo Coil’s strong tradition of supplying proven, fully qualified, shock hardened HVAC equipment to the U.S. Navy’s fleet, and is currently fielded on the LCS program; MIL-A-1986

Fan Coil Assemblies (FCA)

Fan Coil Assemblies (FCA)

HVAC FCA's are designed for floor mounting, used in conjunction with a chilled water system, a drainage system, an air distribution system and a power source for air conditioning; MIL-A-23798

Fan Coil Units (FCU)

Fan Coil Units (FCU)

HVAC Fan Coil Units are used as an alternative to builtup air conditioning recirculation systems of a ship’s heating, ventilating and air conditioning (HVAC) system; MIL-A-24775.

Explosion Proof Fan Coil Units (FCU)

Explosion Proof Fan Coil Units (FCU)

Marlo offers the following Navy Standard Explosion Proof Fan Coil Units developed to replace the gravity cooling coils typically found in ships magazines and battery lockers; MIL-A-24775.

Modular Air Cooler (MAC)

Modular Air Cooler (MAC)

The Modular Air Cooler offers a proven solution to a growing problem with the U.S. Navy’s Nimitz class aircraft carrier’s HVAC system; MIL-C-2939.

Electronic Modular Enclosure (EME)

Electronic Modular Enclosure (EME)

Marlo Coil has two unique Fan Coil Assemblies designed to provide cooled and dehumidified air to shipboard electronics spaces.

Unit Heaters (UH)

Unit Heaters (UH)

Unit Heaters are designed for overhead mounting. The units consist of a fan and motor, steam/hot water heating coil, fan guard and directional louvers built as a single unit; MIL-U-17293.

Unit Coolers, Water (UW)

Unit Coolers, Water (UW)

Unit Coolers consist of a vane axial fan and motor, a DW type duct cooling coil, with air filters and directional louvers built as a single unit for overhead mounting; MIL-C-2939.




Marine Grade Air Handling Units (AHU)

Maintain Connectivity in Extreme Marine Conditions

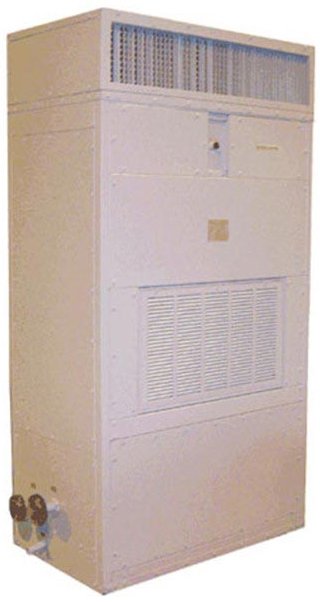

Marine Grade Air Handling Units (AHU)Leonardo DRS is a leading designer and manufacturer of marine grade air handling units (AHU). These AHUs are specifically designed for the marine environment and have a proven track record of performance.

All Leonardo DRS marine grade AHUs utilize quality water and steam coils featuring continuous plate fins and a staggered tube arrangement to provide the best engineering balance between heat transfer, air flow resistance, strength and maintenance. Leonardo DRS’ marine grade AHUs are designed to comply with American Bureau of Shipping and United States Coast Guard regulations.

Standard Construction:

  • 16 GA galvanized steel cabinet
  • IEEE45 electric motor
  • Double sheeted access doors
  • Tongue and groove panel construction
  • Pitched, dual drain, stainless steel drain pans
  • Belt driven fans
  • Internally isolated fans/motors

MARINE AHU MODELS

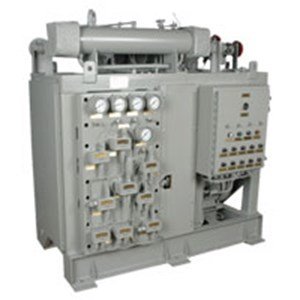

Refrigeration Plant

Refrigeration Plant

Product Cooler Unit

Product Cooler Unit
