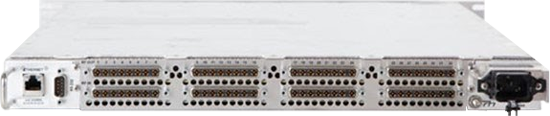

SI-9332 32 x 32 HF Switch Matrix

A Non-blocking HF Switch Matrix with the Lowest Size, Weight and Power in its Class

[x]

Airborne & Intelligence Systems

Signal Solutions

1 Milestone Center Court

Germantown, MD 20876

SSsales@drs.com

+1 301 948 7550




The SI-9332 is a non-blocking 32 x 32 HF switch matrix that allows up to 32 HF inputs in the 0.5 to 30 MHz range to be connected to 32 outputs. It has many applications including the connection of antenna inputs to receivers. The SI-9332 design represents a step forward in design for size, weight and power (SWaP) for an HF switch matrix. It is housed in a 1U rack-mountable chassis that weighs 18 pounds (8.2 kg). The unit provides near unity (0 dB) gain so that it is virtually transparent in system operations.

The SI-9332’s RF input circuitry provides protection from high-voltage transients and nearby lightning strikes. The RF output power is automatically attenuated when very large RF inputs are applied allowing operations with RF inputs of up to 2 watts (+33 dBm). Continuous protection is provided for RF levels of up to 10 watts (+40 dBm). Recovery from overload is automatic.

All switching is fully electronic. By eliminating the use of mechanical relays, the SI-9332 design greatly increases system reliability and provides resistance to vibration. The SI-9332 provides compensatory signal amplification,
sensing of signal path continuity and gain levels, and setting of status registers to indicate error conditions. If a failure occurs, diagnostics can be initiated to quickly localize the fault.

  • 32 x 32 non-blocking full matrix switch
  • 0.5 MHz to 30 MHz frequency range
  • Exceptionally small size and weight
  • 10/100 Base-T Ethernet interface
  • Excellent intermodulation, noise figure, and internal spur performance
SI-9332 data sheet
SI-9332 HF Switch Matrix

The SI-9332 is a non-blocking 32 x 32 HF switch matrix that allows up to 32 HF inputs in the 0.5 to 30 MHz range to be connected to 32 outputs.
